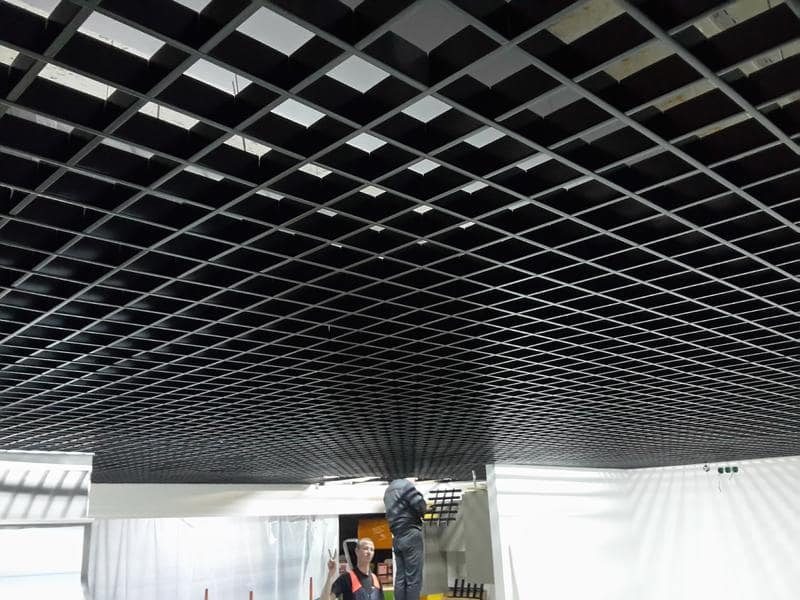

Open cell ceiling

Open cell ceiling is a new type of suspended ceiling that allows the architects to create original design solutions for rooms thanks to a wide range of colors and textures of the ceiling elements. This is a very interesting and unusual architectural solution that complements and decorates the interior, introducing a fresh note. It is a very promising type of suspended ceilings as it has many advantages over other types of ceilings. The space between the ceiling and the open cell ceiling is well and freely ventilated. Open cell ceilings have a high fire safety factor and are also made of stainless steel with a thickness of about 0.25 mm, so they can be used in a relatively humid environment.

Open cell ceiling has the following quality characteristics:

- Reliably hides technical ductwork above the ceiling.

- Provides easy access to technical ductwork. Special grids that can be easily removed are provided for this purpose.

- The use of open cell ceilings allows to create various options for lighting systems, the use of lamps of various types, including lamps built into the space behind the suspended ceiling. This allows to create a variety of lighting effects and generally broadens room design possibilities.

Open cell ceiling is sufficiently resistant to unfavorable weather conditions, corrosion, sunlight. The layer covering the ceiling elements is permanent.

Open cell ceiling is widely used in public buildings:

- restaurants, bars, cafes;

- shopping centers and stores;

- pavilions;

- airports and railway stations;

- car showrooms;

- hotel facilities;

- business centers and offices.

See the Offer:

Message was sent

Send error, please contact us by phone

Open cell ceiling colors

Open cell ceiling is available in white, black, silvery, beige, brown, graphite, wet asphalt colors

Black
RAL 9005

Silvery
RAL 9006

White
RAL 9003

Beige
RAL 1015

Brown
RAL 8017

Graphite
RAL 7024

"Oak"
Wood

Cell sizes of an open cell ceiling

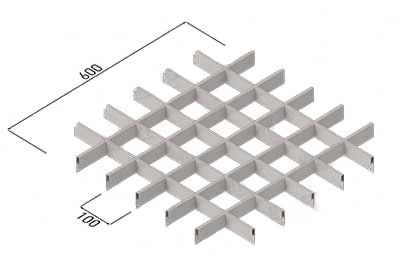

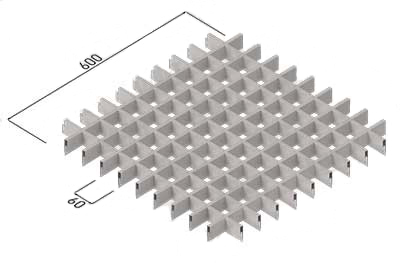

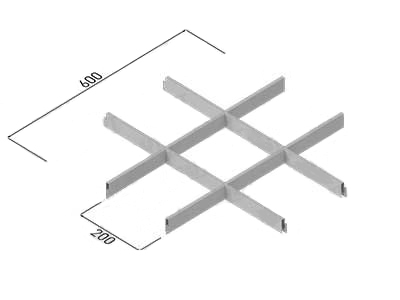

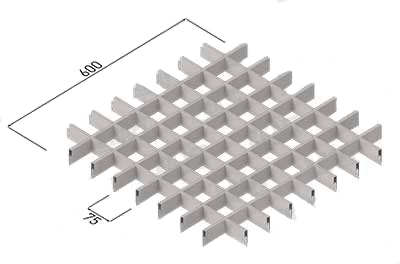

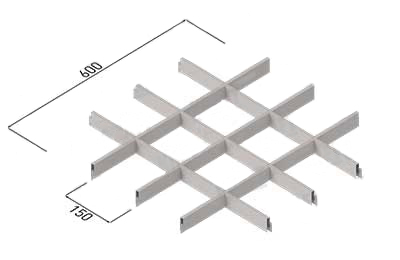

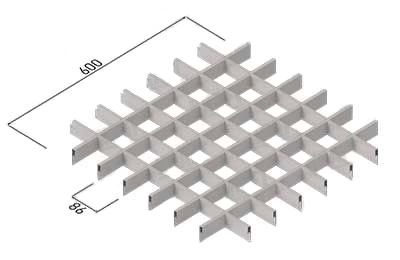

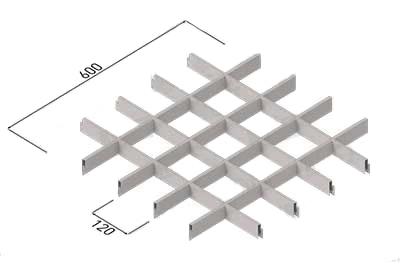

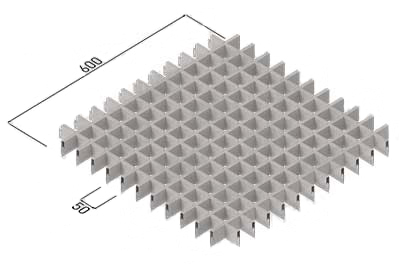

The number of profiles used in each grid determines the cell size of the mesh. Currently, standard open cell suspended ceilings are produced in ten versions, with cells of 30x30, 40x40, 50x50, 60x60, 75x75, 86x86, 100x100, 120x120, 150x150 and 200x200 millimeters.

50x50

60х60

75х75

86х86

100х100

120х120

150х150

200x200

Do you have any questions? Write to us!

Write Calculate the Project

Cell size, mm.	Upper profile, pcs.	Lower profile, pcs.	Number of profiles in a raster, pcs.
30x30	19	19	38
40x40	14	14	28
50x50	11	11	22
60x60	9	9	18
75x75	7	7	14
86x86	6	6	12
100x100	5	5	10
120x120	4	4	8
150x150	3	3	6
200x200	2	2	4

Open cell ceiling construction

Open cell ceiling construction

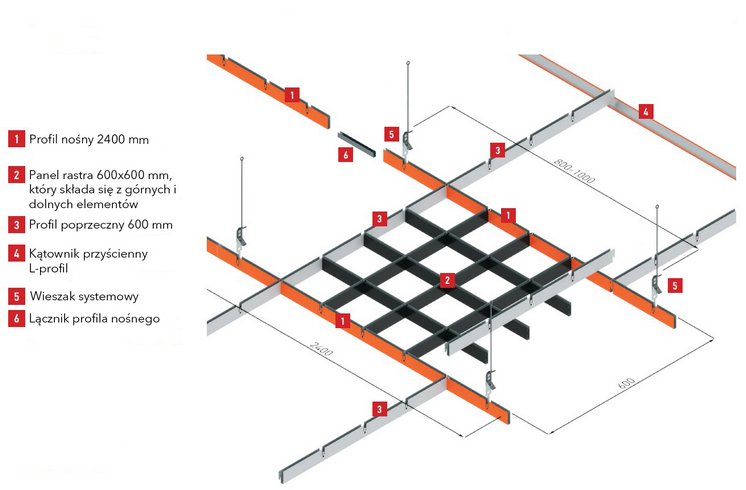

Standard open cell ceiling consists of individual elements:
600 x 600 mm raster, which consists of the profiles:
- 600 mm upper profile

- 600 mm lower profile

- 600 mm cross profile

- 2400 mm bearing profile

- 2400 mm bearing profiles connector

- suspension (of adjustable length)

- wall angle bracket

Name	Module, mm	Unit of measure	50x50	60x60	75x75	86x86	100x100	120x120	150x150	200x200
Raster	600x600	szt.	2.78	2.78	2.78	2.78	2.78	2.78	2.78	2.78
Upper profile	600	pcs.	30.58	25.02	19.46	16.68	13.9	11.12	8.34	5.56
Lower profile	600	pcs.	30.58	25.02	19.46	16.68	13.9	11.12	8.34	5.56
Cross profile	600	pcs.	2.78	2.78	2.78	2.78	2.78	2.78	2.78	2.78
Bearing profile	2400	pcs.	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Connector	–	pcs.	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
System rack	–	pcs.	2.1	2.1	2.1	2.1	2.1	2.1	2.1	2.1
Wall angle bracket	2500	szt.	as needed

Technical data

Technical data

Raster mesh consists of elements made of galvanized steel sheet, 0.25 mm thick, of U cross section, 10 mm base and 40 mm high;

The weight of the open cell ceiling depends on the cell size (2-6 kg / m2);

Open area from 60% to 93%;

Recommendation to use open cell ceiling depending on the size of the room

Cell, mm	Room height, m
Cell, mm	4	6	8	10	12
Room length – 10 m
50, 60, 75, 86	+	+	+	+	+
100	±	+	+	+	+
120	–	±	+	+	+
150	–	±	+	+	+
200	–	±	+	+	+
Room length – 20 m
50, 60, 75, 86	+	+	+	+	+
100	+	+	±	+	+
120	±	±	–	±	+
150	±	–	–	±	+
200	±	–	–	±	+
Room length – 30 m
50, 60, 75, 86	+	+	+	+	+
100	+	+	+	+	±
120	+	+	+	±	–
150	+	+	±	–	–
200	+	±	–	–	–
Room length – 40 m
50, 60, 75, 86	+	+	+	+	+
100	+	+	+	+	+
120	+	+	+	+	±
150	+	+	+	±	–
200	+	+	±	–	–
Room length – 50 m
50, 60, 75, 86	+	+	+	+	+
100	+	+	+	+	+
120	+	+	+	+	+
150	+	+	+	+	±
200	+	+	+	±	–

Suspended ceiling mounting instructions

Step 1. We start the installation of the open cell ceiling by determining its level using a laser level and drawing it on the walls. The distance from the suspended ceiling to the main one must be at least 150 mm.

Step 2. Wall angle bracket is mounted at the perimeter. It is mounted on dowels, the distance between the dowels is 300-500 mm.

Step 3. Lines of the bearing profiles course and the points of fixing the racks are marked on the ceiling. The racks are mounted on dowels previously embedded in the ceiling with a step of 800-1000 mm.
Racks closest to the wall should be fixed at a distance of not more than 600 mm from the wall. The suspension consists of an expansion spring and two rods (with a hook and an eyelet) or a rod and a system rack.

Step 4. Bearing profile are attached to the racks, and when connected with perpendicular crossbars, they form a grid - the structure of the open cell ceiling.
Bearing profiles are connected with each other using connectors.

Step 5. On a flat, clean surface, collect the upper profile and the lower profile of the ceiling into a raster.
Mount open cell ceiling panels from the top to the prepared and properly leveled grid. Bottom profiles in the panel must be parallel to the 2400 mm long bearing profile.
